SPECIFICATIONS

Brand Name: NoEnName_Null

Condition: New

High-concerned chemical: None

Model Number: Airplane Flashing LED Circuit DIY Kit

Origin: Mainland China

Type: Module

is_customized: Yes

Product details:

DIY Airplane Electronic Kit LED Flashing Simulate Aircraft Suite Soldering Project Practice For STEM School Student Learning

1.Introduction:

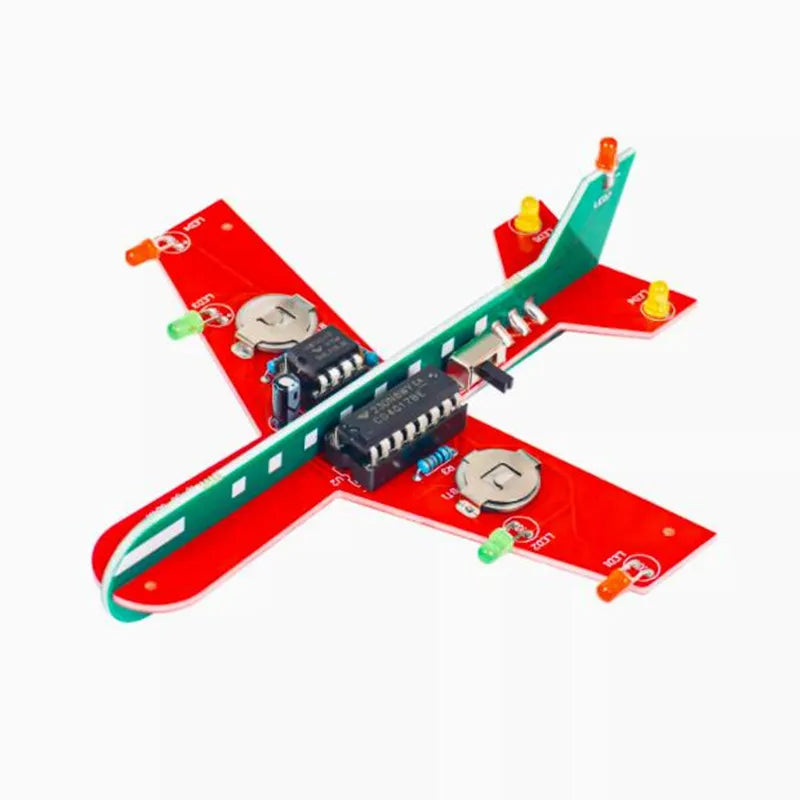

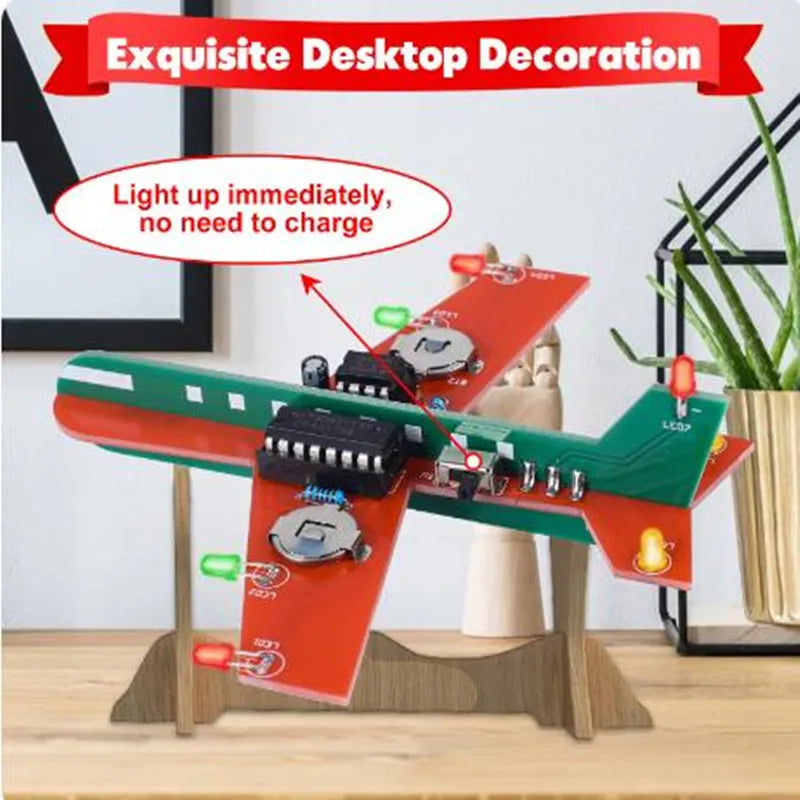

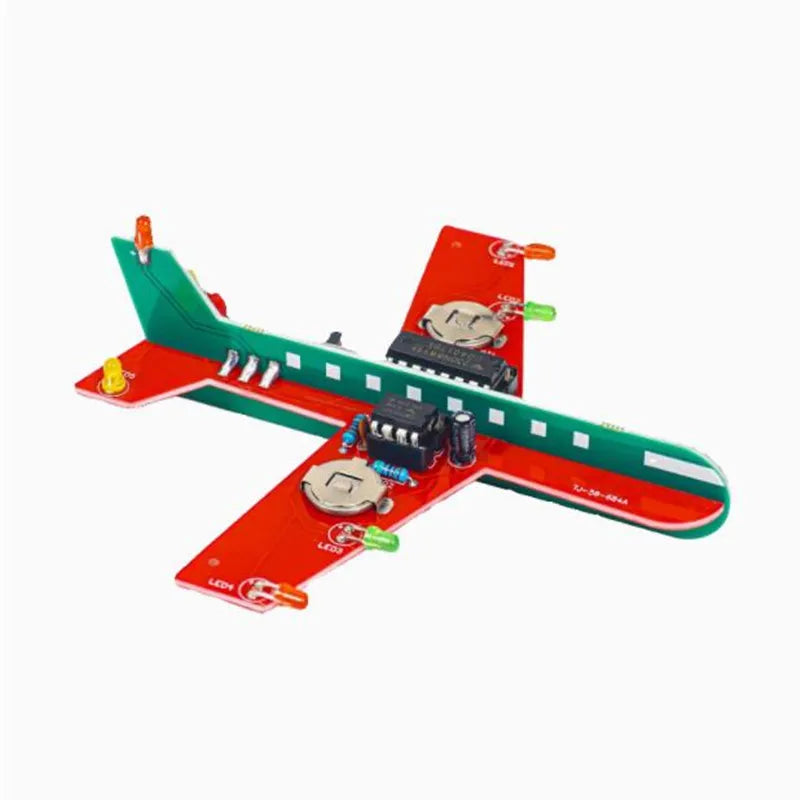

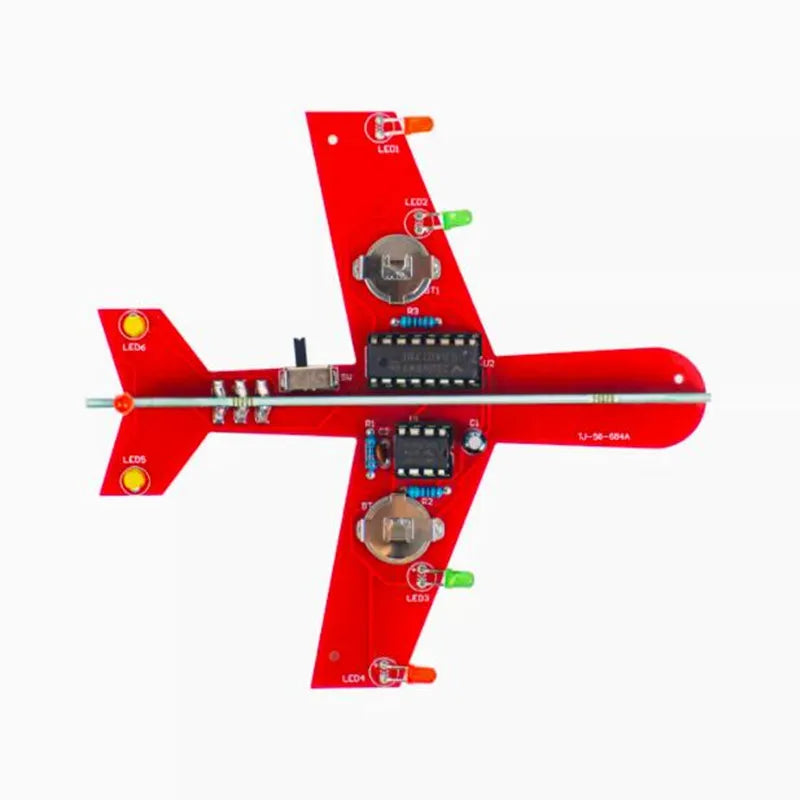

It is an Airplane Flashing LED Circuit DIY Kit.It can simulate the flickering effect of airplane lights and DIY create a very artistic desktop decoration.It can not only be used as a DIY electronic welding kit that allows you to better understand the circuit and learn how to soldering, but also as a very suitable experimental workbench tool.

2.Feature:

1>.Simulate aircraft design

2>.Built-in CR1220 lithium battery

3>.Interesting DIY Manual Soldering

4>.Simple and easy to operate

3.Parameter:

1>.LED color: Red/Green/Yellow

2>.Battery type:CR1220

3>.Work Temperature:-20℃~85℃

4>.Work Humidity:0%~95%RH

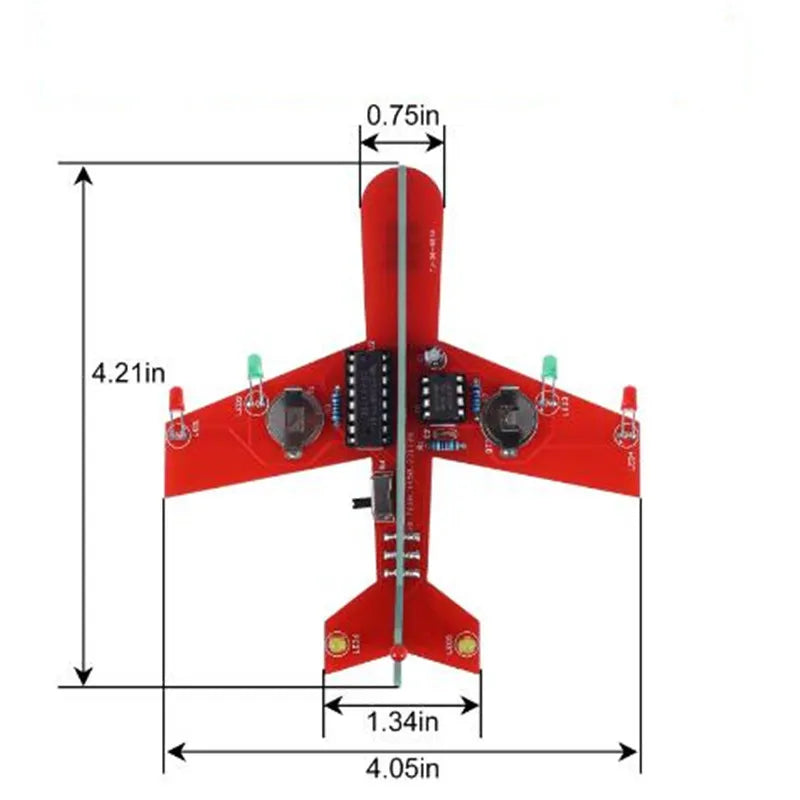

5>.Size(Installed):110*105*33mm

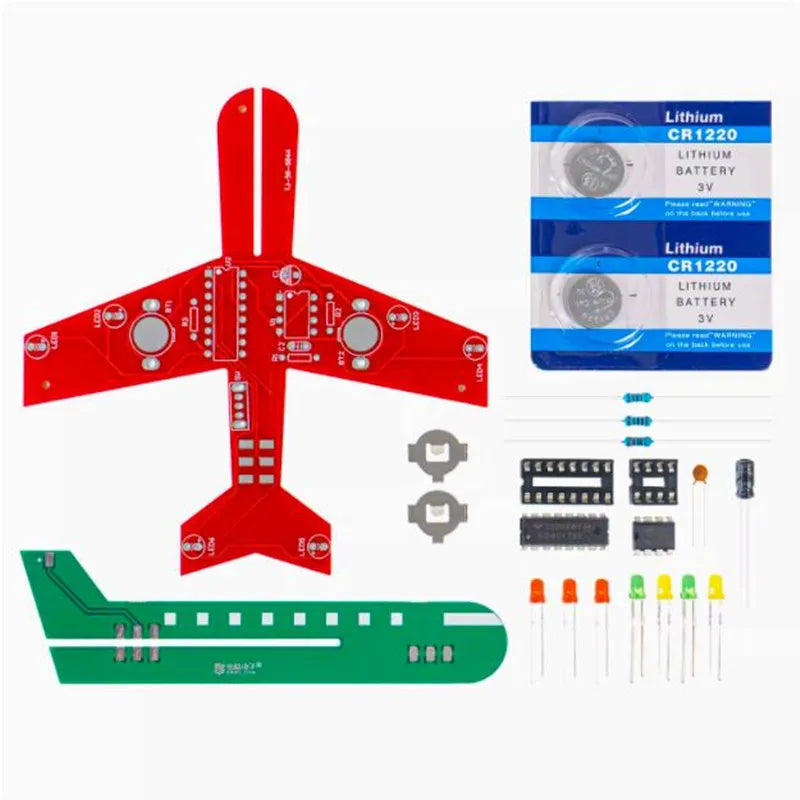

4.Component listing:

1>.1pcs DIP-16 CD4017BE decimal counter at U2.

2>.1pcs DIP-8 NE555P timer at U1.

3>.1pcs DIP-16 IC Socket at U2.

4>.1pcs DIP-8 IC Socket at U1.

5>.1pcs 1Kohm Metal Film Resistor at R3.

6>.1pcs 5.1Kohm Metal Film Resistor at R2.

7>.1pcs 10Kohm Metal Film Resistor at R1.

8>.3pcs 3mm Red LED at LED1,LED4,LED7.

9>.2pcs 3mm Green LED at LED2,LED3.

10>.2pcs 3mm Yellow LED at LED5,LED6.

11>.1pcs 0.01uF 103 Ceramic Capacitor at C2.

12>.1pcs 10uF Electrolytic Capacitor at C1.

13>.1pcs Power Switch at SW.

14>.1pcs CR1220 lithium battery at BT1,BT2.

15>.1pcs CR1220 lithium battery socket at BT1,BT2.

16>.2pcs PCB circuit board

5.Application:

1>.Training welding skills

2>.Student school

3>.DIY production

4>.Project Design

5>.Electronic competition

6>.Gift giving

7>.Crafts collection

8>.Home decoration

9>.Souvenir collection

10>.Graduation design

11>.Holiday gifts

6.Installation Tips:

1>.User needs to prepare the solderingtool at first.

2>.Please be patient until the installation is complete.

3>.The package is DIY kit.It need finish install by user.

4>.The soldering iron can't touch the components for a long time(1.0 second), otherwise it will damage the components.

5>.Pay attention to the positive and negative of the components.

6>.Strictly prohibit short circuit.

7>.Install complex components preferentially.

8>.Make sure all components are in right direction and right place.

9>.Please wear anti-static gloves or anti-static wristbands when installing electronic components.

10>.It is strongly recommended to read the installation manual before starting installation!!!
